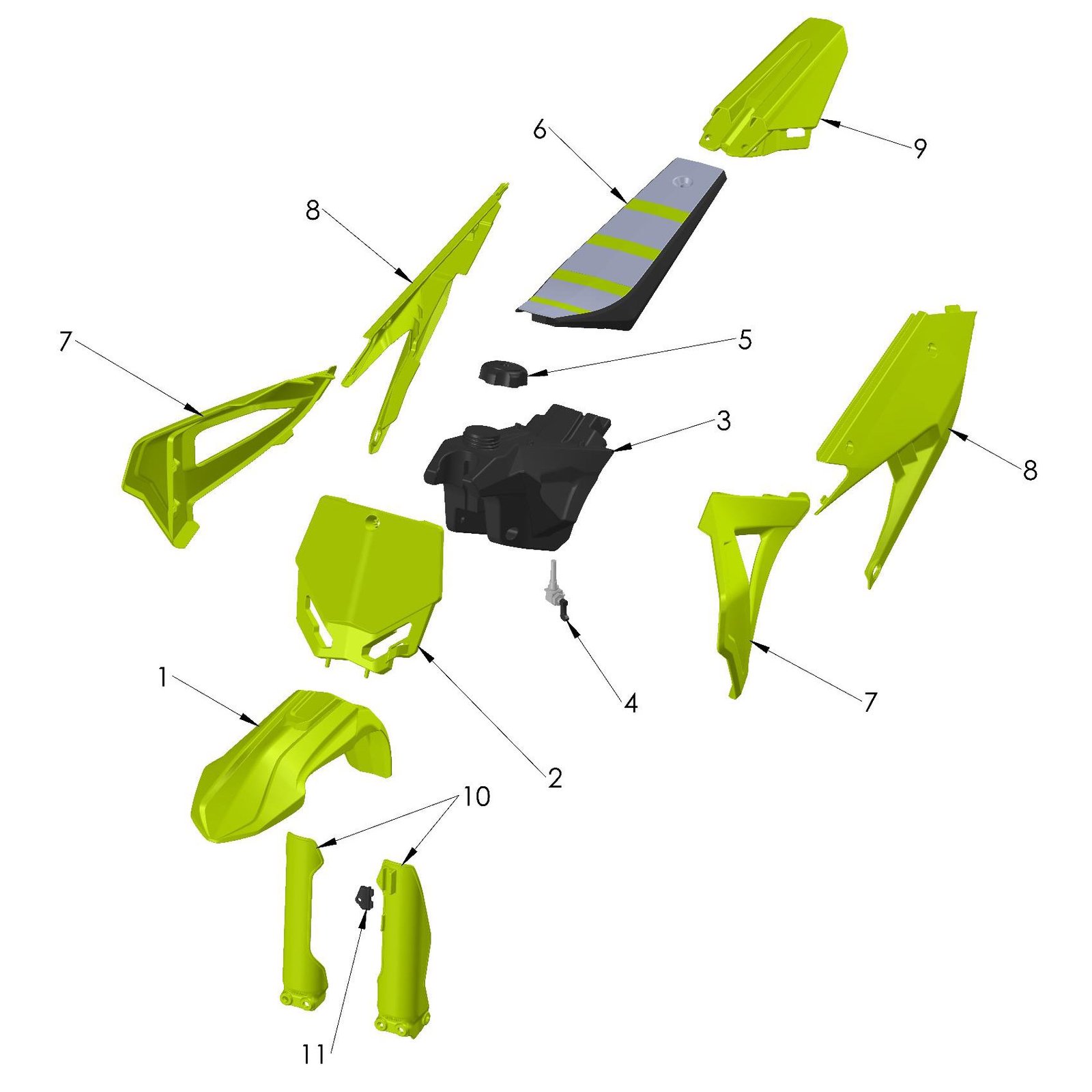

TCCS0009FXX Front Fender – Mega Flo Yellow quantity
1 Front Fender – Mega Flo Yellow TCCS0009FXX REF: 1
TCCS0009FXX
TCCS0009x Front Fender x – Denotes Color BLK, WHT, YEL, FLO quantity
1 Front Fender x – Denotes Color BLK, WHT, YEL, FLO TCCS0009x REF: 1
TCCS0009x
HCBF0616 M6x16mm Flange Head Bolt (2 Req’d) quantity
1A M6x16mm Flange Head Bolt (2 Req’d) HCBF0616 REF: 1A
HCBF0616
TCMU0041FXX Number Plate Front – Mega Flow Yellow quantity
2 Number Plate Front – Mega Flow Yellow TCMU0041FXX REF: 2
TCMU0041FXX
TCMU0041x Front Number Plate x – Denotes Color BLK, WHT, YEL quantity
2 Front Number Plate x – Denotes Color BLK, WHT, YEL TCMU0041x REF: 2
TCMU0041x
HCBF0616 M6x16mm Flange Head Bolt (2 Req’d) quantity
2A M6x16mm Flange Head Bolt (2 Req’d) HCBF0616 REF: 2A
HCBF0616
TCMU0048 Fuel Tank – Black (No Petcock or Cap) quantity
3 Fuel Tank – Black (No Petcock or Cap) TCMU0048 REF: 3
TCMU0048
TCMU0047 Bushing - Fuel Tank quantity
3A Bushing - Fuel Tank TCMU0047 REF: 3A
TCMU0047
TCMU0017 Front Tank Mount Bushing – Square Threaded quantity
3B Front Tank Mount Bushing – Square Threaded TCMU0017 REF: 3B
TCMU0017
TCC60029 Spacer – Seat Mount quantity
3C Spacer – Seat Mount TCC60029 REF: 3C
TCC60029
HCFH0620 M6x20mm Flat Head – Front Seat Mount quantity
3D M6x20mm Flat Head – Front Seat Mount HCFH0620 REF: 3D
HCFH0620
HCFH0675 M6x75mm Flat Head quantity
3E M6x75mm Flat Head HCFH0675 REF: 3E
HCFH0675
TCMU0151 Petcock quantity
4 Petcock TCMU0151 REF: 4
TCMU0151
TCHA0002 Cap – Fuel Tank quantity
5 Cap – Fuel Tank TCHA0002 REF: 5
TCHA0002
TCHA0003 Hose – Fuel Cap quantity
5A Hose – Fuel Cap TCHA0003 REF: 5A
TCHA0003
TAFW2025 Seat – Factory Works Edition - CX50 quantity
6 Seat – Factory Works Edition - CX50 TAFW2025 REF: 6
TAFW2025
TCFW0007 Cover – Seat – Factory Works Edition CX50 quantity
6A Cover – Seat – Factory Works Edition CX50 TCFW0007 REF: 6A
TCFW0007
TCMU0046BLK Seat Mount Spacer quantity
6B Seat Mount Spacer TCMU0046BLK REF: 6B
TCMU0046BLK
HCFH0650 M6x50mm Flat Head Screw quantity
6C M6x50mm Flat Head Screw HCFH0650 REF: 6C
HCFH0650
TCMU0043FXX Shroud Set – Mega Flo Yellow quantity
7 Shroud Set – Mega Flo Yellow TCMU0043FXX REF: 7
TCMU0043FXX
TCMU0043x Shroud x – Denotes Color BLK, WHT, YEL, FLO quantity
7 Shroud x – Denotes Color BLK, WHT, YEL, FLO TCMU0043x REF: 7
TCMU0043x
HCSP0004 Screw – Plascrew - Aluminum quantity
7A Screw – Plascrew - Aluminum HCSP0004 REF: 7A
HCSP0004
TCCS0011FXX Number Plate Pair – Mega Flo Yellow quantity
8 Number Plate Pair – Mega Flo Yellow TCCS0011FXX REF: 8
TCCS0011FXX
TCCS0011x Number Plate Pair x – Denotes Color BLK, WHT, YEL quantity
8 Number Plate Pair x – Denotes Color BLK, WHT, YEL TCCS0011x REF: 8
TCCS0011x
HCBC0502 M5x20mm Socket Head Cap Screw (2 Req’d) quantity
8A M5x20mm Socket Head Cap Screw (2 Req’d) HCBC0502 REF: 8A
HCBC0502
TCC60017 Body Panel Washer 5mm (2 Req’d per Side) quantity
8B Body Panel Washer 5mm (2 Req’d per Side) TCC60017 REF: 8B
TCC60017
HCCN0000 5mm Extruded “U” Nut – Coil Mounting (2 Req’d) quantity
8C 5mm Extruded “U” Nut – Coil Mounting (2 Req’d) HCCN0000 REF: 8C
HCCN0000
TCMU0055FXX Rear Fender – Mega Flo Yellow quantity
9 Rear Fender – Mega Flo Yellow TCMU0055FXX REF: 9
TCMU0055FXX
TCMU0055x Rear Fender x – Denotes Color BLK, WHT, YEL, FLO quantity
9 Rear Fender x – Denotes Color BLK, WHT, YEL, FLO TCMU0055x REF: 9
TCMU0055x
HCSP0610BLK Bolt - Fork Guard - Black (6 Req’d) quantity
9A Bolt - Fork Guard - Black (6 Req’d) HCSP0610BLK REF: 9A
HCSP0610BLK
HCHA0003 Clip Nut – 6mm quantity
9B Clip Nut – 6mm HCHA0003 REF: 9B
HCHA0003
KCMU0035 Fork Guard Set quantity
10 Fork Guard Set KCMU0035 REF: 10
KCMU0035
HCSP0610BLK Bolt - Fork Guard - Black (6 Req’d) quantity
10A Bolt - Fork Guard - Black (6 Req’d) HCSP0610BLK REF: 10A
HCSP0610BLK
KCMU0036 Clamp – Brake Line quantity
11 Clamp – Brake Line KCMU0036 REF: 11
KCMU0036
HCSP0004 Screw – Plascrew - Aluminum quantity
11A Screw – Plascrew - Aluminum HCSP0004 REF: 11A
HCSP0004
TCFW2025 Graphic Kit – CX50 FWE quantity
Accessory Graphic Kit – CX50 FWE TCFW2025 REF: Accessory
TCFW2025
TKFW2025 Bodywork Kit – FWE – Mega Flo Plastic quantity
Accessory Bodywork Kit – FWE – Mega Flo Plastic TKFW2025 REF: Accessory
TKFW2025
TKFW2025BLK Bodywork Kit – FWE – Plastic Black quantity
Accessory Bodywork Kit – FWE – Plastic Black TKFW2025BLK REF: Accessory
TKFW2025BLK
TKFW2025WHT Bodywork Kit – FWE – Plastic White quantity
Accessory Bodywork Kit – FWE – Plastic White TKFW2025WHT REF: Accessory
TKFW2025WHT
